CO-NELE Has Obtained More Than 80 National Technology Patents & More Than10,000 Mixers.

Granulation Machine

Inclined intensive mixer/granulators can handle a wide variety of powdered raw materials. This machine facilitates the granulation of different materials used across various industries.


0.4m³/h-24m³/h

Industrial productivity

500ml-7000L

capacity

Inclined intensive mixer is a special technology that enables fine mixing, granulation and coating in a single machine. Due to these advantages, it is widely used especially in chemical, ceramic, refractory, fertilizers and desiccant industries.

Granulation in Intensive Mixer CoNele

Capable of mixing dry powders, pastes, slurries, and liquids.

The special inclined design provides homogeneous mixing.

Intensive mixer technology achieves the desired product in less time.

Process optimization can be achieved by adjusting pan and rotor speeds.

The pan can be operated in both directions, depending on the process.

The granulation process can be performed in the same machine by changing the mixing tip.

It provides ease of operation in industrial plants with its under-mixer discharge system.

In a two-step preparation process, only one mixer is needed for mixing and granulation.


Type of Granulator CoNele


TypeGranulation/LPelletizing discVacuum/Heating/Cooling
Discharging
CEL010.5-11Vacuum/Heating/Cooling
Disassembly and manual unloading
CEL052-51Vacuum/Heating/Cooling
Mixing barrel lifting and manual unloading
CEL105-101Vacuum/Heating/Cooling
Mixing barrel lifting and manual unloading
CR022-51Vacuum/Heating/Cooling
Automatically flip the mixing barrel to unload
CR045-101Vacuum/Heating/Cooling
Automatically flip the mixing barrel to unload
CR0512-251Vacuum/Heating/Cooling
Automatically flip the mixing barrel to unload
CR0825-501Vacuum/Heating/Cooling
Automatically flip the mixing barrel to unload
CR0950-1001Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CRV0975-1501Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CR11125-2501Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CR15M175-3501Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CR15250-5001Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CRV15300-6001Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CR19375-7501Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CRV19
500-10001Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CR20
625-12501Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CR24
750-15001Vacuum/Heating/Cooling
Hydraulic cylinder center discharge
CRV241000-20001Vacuum/Heating/Cooling
Hydraulic cylinder center discharge

Product Component Gallery

intensive mixer granulator

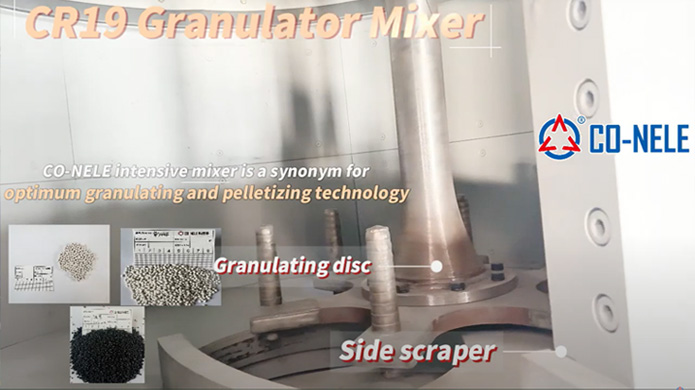

Granulator Working Principle

Based on turbulent 3D mixing technology, the equipment realizes integrated mixing, granulation and unloading through the synergy of mechanical structure and intelligent control:

Mixing: Rotating mixing pan, high-speed eccentric rotor and fixed bottom/wall scrapers form a 3D turbulent mixing field, driving multi-directional material movement, shearing and dispersing powder to achieve uniform mixing without dead zones.

Granulation: Intelligent liquid spraying system sprays binder quantitatively to form micro core particles; adjusting the speed of rotor/pan controls material collision and rolling, making core particles grow to the target size; mechanical shearing and rolling shape spherical granules with precise size control.

Unloading: Hydraulic central discharge realizes fast, residue-free unloading, avoiding cross-contamination and connecting seamlessly with subsequent molding and sintering processes.

intensive mixer granulator

Laboratory Small Granulator

CO-NELE Laboratory Small Granulator offers a full range of compact specifications: 500ml, 1L, 2L, 5L, 10L, 25L.

With adjustable granule size of 0.1-5mm, it is perfectly tailored for ceramic raw material R&D, small-batch formula testing and lab-scale granulation trials,

delivering precise and consistent granulation performance for diverse ceramic powder materials.

Featured Industry Solutions

intensive mixer granulator
Ceramic
intensive mixer granulator
Fertilizer
intensive mixer granulator
Chemical materials
intensive mixer granulator
Powder metallurgy
intensive mixer granulator
Graphite granules
intensive mixer granulator
Bentonite Granules
intensive mixer granulator
Carbon Granules
intensive mixer granulator
Granulation
