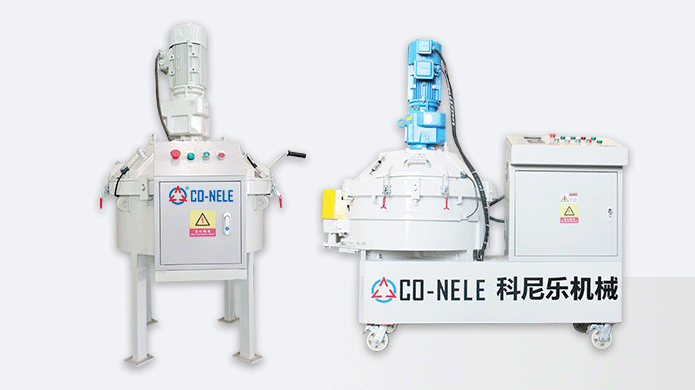

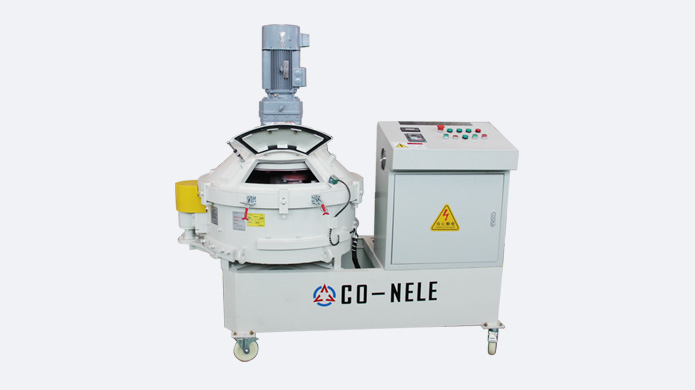

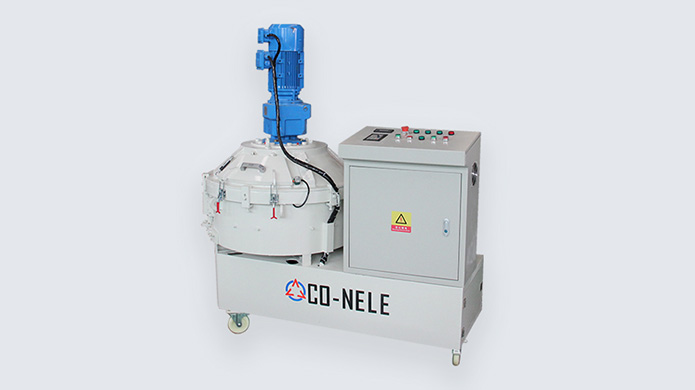

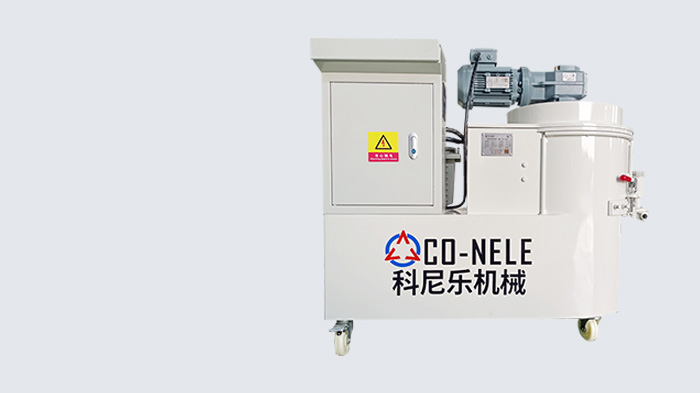

Planetary Laboratory Mixer
High mixing efficiency and high mixing quality,100% mixing uniform
Material mixing laboratory
CO-NELE has a material mixing laboratory. For new industries and new materials, customers can provide materials to CO-NELE for on-site mixing and order the mixer after the customer is satisfied with the stirring effect.
Material of mixing barrel can be customized according to different experimental materials, with high flexibility.
Mixer mode can be customized high-end according to different properties of materials;
Variable-frequency motor can be selected to realize stepless speed regulation and frequency conversion stirring.
The equipment is safe and reliable with small size, low noise and high environmental performance.
Type Of Planetary concrete Mixer
| Type | CMP 50 | CMP100 | CMP150 | CMP 250 | CMP 330 | CMP 500 | CMP 750 | CMP 1000 |
|---|---|---|---|---|---|---|---|---|
| In capacity(L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 |
| Out capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 |
| Out mass（kg） | 120 | 240 | 360 | 800 | 200 | 1800 | 2400 | 3000 |
| Mixing power(kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 |
| Discharging power(kw) | Pneumatic discharge (optional hydraulic) | 3 | ||||||
| Planet/main planet(nr) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/3 | 2/4 |
| Paddle | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharging paddle | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Weight(kg) | 700 | 1100 | 1300 | 1500 | 2000 | 2400 | 3900 | 6200 |
| Lifting power(kw) | - | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 | 11 |
