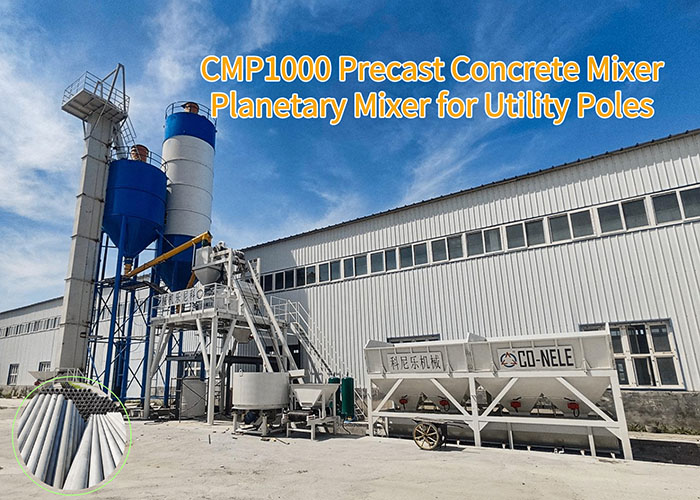

The CONELE CMP1000 planetary concrete mixer and its accompanying integrated mixing plant solution provide a comprehensive, coordinated workflow—covering everything from batching and conveying to mixing—for manufacturers of precast concrete utility poles. After evaluating various options, a Southeast Asian concrete products manufacturer selected the complete 1-cubic-meter mixing plant solution centered on the CONELE CMP1000 vertical-shaft planetary mixer. The manufacturer provided a full "turnkey" delivery, handling everything from engineering design and site layout to installation and commissioning.

1. 3D planetary motion (revolution plus rotation)

The CMP1000 concrete utility poles mixer employs a unique planetary mixing principle: while the mixing arms revolve around a central axis, the blades rotate on their own axes. This creates a complex motion pattern within the drum—involving 3D convection, shearing, and diffusion—ensuring 360-degree mixing with no dead zones. Measured data shows that the coefficient of variation for fly ash and cement distribution in C60 concrete is less than 3%.

2. High-shear energy zones and nanoscale admixture dispersion

The mixer’s unique combination of scrapers and high-speed blades rapidly disperses admixtures into nanoscale droplets. This ensures the cement paste uniformly coats the surface of every aggregate particle, effectively reducing internal concrete porosity.

3. Wear-resistant design ensuring long-term stable operation

Concrete aggregates used in utility pole production are often large and highly abrasive, placing rigorous demands on the mixer's wear resistance. The CMP1000 features liners and blades made of high-chromium alloy; combined with a heavy-duty structural design, this ensures consistent mixing performance even during prolonged, high-frequency operation.
