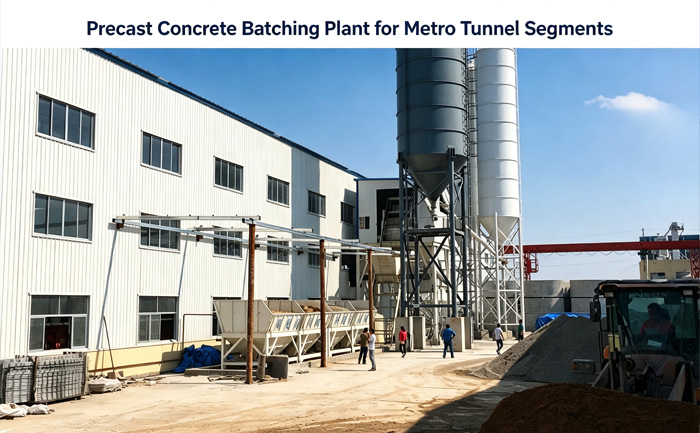

90m³/h Precast Metro Segment Concrete Batching Plant Launched for Large-Scale Shield Tunnel Lining ProductionWith the booming global metro and underground shield tunnel construction market,CO-NELE company releases a customized 90m³/h precast segment concrete batching plant, specially optimized for mass production of subway tunnel lining segments. This mixing station adopts vertical planetary mixer as core mixing unit, solving the strict homogeneity, low air void, high impermeability requirements of steam-cured C50/C60 tunnel segment concrete, delivering stable 90 cubic meters per hour continuous output for large precast segment factories worldwide.
1. Core Configuration of 90m³/h Segment Dedicated Batching Plant
1.1 Vertical Planetary Mixer for Tunnel Segment Concrete
Traditional twin-shaft mixers cannot eliminate mixing dead angles, resulting in excessive bubbles and uneven strength of tunnel segments. Our matched CMP planetary mixer realizes full-range uniform mixing, low slump loss, no segregation, perfectly fit steam curing segment production process.No dead zone mixing structureLow air content finished concreteStable mixing performance for stiff segment concrete
1.2 Ultra-Precise Weighing & Dosing System for High-Strength Segment Concrete
Metro tunnel lining requires strict raw material proportion to reach P10/P12 anti-permeability standard. This 90m³ plant equips independent micro-scale admixture weighing unit, aggregate, cement, fly ash weighing error controlled within ±0.5%.Multi-group segment concrete formula storageAutomatic water compensation based on aggregate humidityReal-time data recording for quality traceability
1.3 Full Closed Environmental Protection System
Designed for indoor precast workshop, complete dust removal, sand stone separator and sewage recycling system, zero waste discharge, meet global environmental production standards for precast factories.

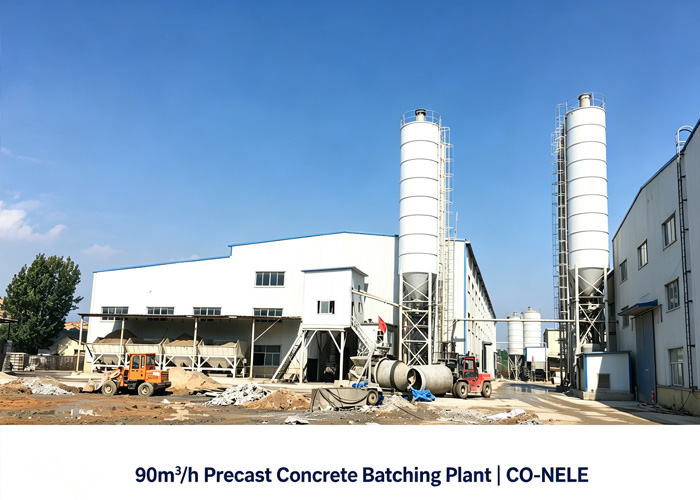

HZS90 Precast Segment Concrete Batching Plant Technical Parameters
| Item | Standard Value |
|---|
| Model | HZS90 (Planetary Mixer Version) |
| Theoretical Production Capacity | 90 m³/h |
| Matching Mixer Model | CMP1500 Vertical Planetary Mixer |
| Discharge Volume Per Batch | 1500L / 1.5m³ |
| Mixing Cycle Time | 60s |
| Aggregate Batcher Model | PLD2400 |
| Aggregate Bin Configuration | 4 bins × 12m³ |
| Max Aggregate Size | 80mm (31.5mm for tunnel segment) |
| Discharge Height | 3800mm (customizable up to 4200mm) |
| Belt Conveyor Capacity | 450t/h |
| Screw Conveyor Quantity & Capacity | 3 sets, 80t/h each |
| Standard Powder Silo | 2×100t + 1×100t (expandable to 200t) |
Weighing System Accuracy
- Aggregate weighing: 0~5000kg, tolerance ±1%
- Cement weighing: 0~1100kg, tolerance ±0.5%
- Fly ash / Slag powder weighing: 0~600kg, tolerance ±0.5%
- Water weighing: 0~350kg, tolerance ±0.5%
- Admixture micro dosing scale: 0~60kg, tolerance ±0.3%
Power & Control
- Mixer main power: 55kW
- Hydraulic discharge power: 3kW
- Total installed power: approx. 175kW
- Control system: Fully automatic PLC, stores over 50 groups of segment concrete formulas
- Environmental configuration: Full closed dust removal, sand-stone separator, sewage recycling system
- Application: Metro shield tunnel segments, steam-cured precast components, UHPC high-performance concrete
CMP1500 Vertical Planetary Mixer Technical Data
| Item | Parameter |
|---|
| Model | CMP1500 |
| Discharge Capacity | 1500L (1.5m³) |
| Feed Capacity | 2250L |
| Main Mixing Motor Power | 55kW |
| Hydraulic Discharge Motor Power | 3kW |
| Planet Arm Structure | 2 planet arms with 4 high-chromium wear-resistant mixing blades |
| Wall Scraper | 1 set integrated wear-resistant side scraper, no mixing dead zone |
| Discharge Mode | Bottom large hydraulic gate, discharge time 15~20s |
| Applicable Concrete | Dry-stiff segment concrete, C50/C60 high-strength concrete, low-shrinkage steam-cured concrete, UHPC |
| Theoretical Batches Per Hour | 10~12 batches |
| Total Machine Weight | Approx. 9000kg |
| Overall Dimension L×W×H | 3625×2902×2695mm |
Core Advantages for Tunnel Segment Production
- Zero dead-angle mixing for uniform concrete
- Low air void, smooth surface after steam curing
- Excellent mixing performance for low-slump stiff segment concrete
- Long service life wear-resistant alloy parts for continuous precast workshop operation
- Optional multi-outlet discharge to supply multiple segment production lines simultaneously
2. Key Advantages for Metro Segment Precast Factory
Steady 90m³/h hourly output, support 24h continuous tunnel segment casting lineConcrete finished product with high compactness, reduce segment surface defect rateIntelligent PLC automatic control, one-click switch different lining concrete formulasModular layout design, flexible to match new or existing precast workshop spaceGlobal turnkey service: layout design, manufacturing, overseas installation, technical training and spare parts supply3. Application Scenarios

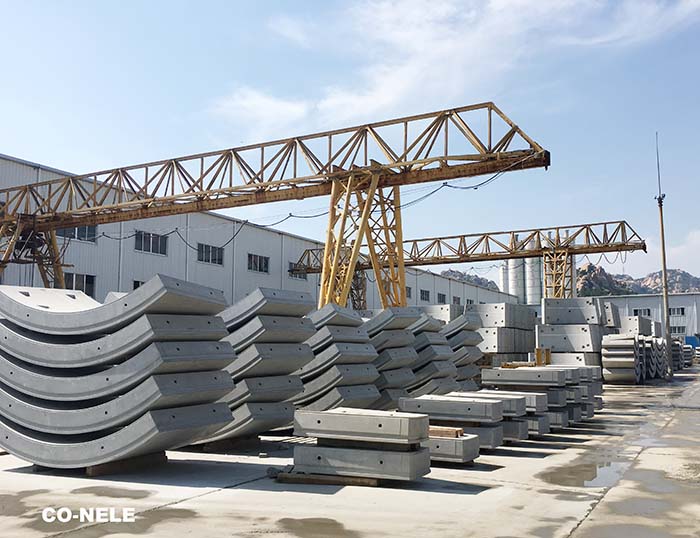

This 90 cubic meter precast batching plant is widely applied in:Metro subway shield tunnel segment precast factoryUrban underground comprehensive pipe gallery lining production lineRailway tunnel shield lining component workshopLarge municipal precast concrete component manufacturing base4. Global Project Cases
We have delivered multiple sets of segment dedicated batching plants to Southeast Asia, South Asia, Middle East and Latin America metro projects. All operating lines adopt planetary mixing host, stable concrete quality, help customers pass tunnel lining structural inspection smoothly.If you are planning to build a new precast segment factory or upgrade existing mixing equipment, welcome to contact our engineering team for free customized layout drawing and technical quotation.FAQ
Q1: Why use planetary mixer instead of twin-shaft mixer for tunnel segment production?
A1: Tunnel segment concrete is stiff, high-strength and needs low bubble rate. Planetary mixer has no mixing dead angles, higher homogeneity, effectively avoid honeycomb and pitting on segment surface after steam curing. Twin-shaft mixer is more suitable for ordinary ready-mix concrete.Q2: Is 90m³/h batching plant enough for medium-scale segment factory?
A2: 90m³/h stable output can support daily production of 300–600 standard metro segments, matching most medium-sized subway precast production lines. For super-large factories, we can customize 120/180m³/h segment special mixing station.Q3: Can this mixing plant store multiple formulas for different lining grades?
A3: Yes, the automatic control system stores unlimited groups of mix designs, support C50, C60, impermeable P12, low-shrinkage UHPC segment concrete one-click switching.The 90m³/h precast metro segment concrete batching plant is a targeted solution for underground infrastructure precast manufacturers. It balances production efficiency, concrete quality and environmental standards, becoming the preferred mixing equipment for global subway tunnel projects.
